Description
Type A aluminum honeycomb wall panels are class B-15 / B-0 fire resistant. The surface finish is a PVC film (150u) and low flame spread, this means that the surface will adequately restrict the spread of flames or the option can be galvanized steel.
Type A Aluminum Honeycomb Wall Panel
Type A aluminum honeycomb wall panels are class B-15 / B-0 fire resistant. The surface finish is a PVC film (150u) and low flame spread, this means that the surface will adequately restrict the spread of flames or the option can be galvanized steel.

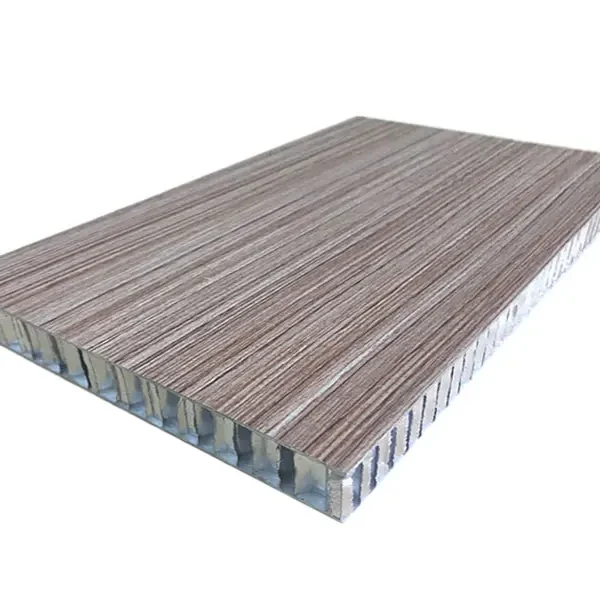

The core material is lightweight aluminum honeycomb. Or check our Type A rockwool wall panel variance.
WHY TO CHOOSE FOR ALUMINUM HONEYCOMB?
The benefit from Aluminum Honeycomb panels:
- Extremely Low Weight
- Excellent Strength
- High Resistance to Moisture
- High Resistance to Corrosion
- Excellent Thermal Conductivity
- Noncombustible
- High Resistance to Fungi
The Aluminum wall panels are available in standard sizes of 550 mm width x required length
with a maximum of 3000 mm. The tolerance of width is -1,0mm, height ±3 mm or thickness -1,0mm.
The table below shows the 3 variations of the Aluminum wall panels that are available.
| Type | CLP-P3 | CLP-L5 | CLP-L6 | CLP-P4 | CLP-L10 | CLP-L9 |
| Fire-class | B-15 | B-0 | B-0 | / | / | / |
| Thickness (mm) | 50 | 30 | 25 | 50 | 30 | 25 |
| Weight kg/m2 | 13.1 | 12.4 | 12.2 | 7.4 | 6.8 | 6.7 |
| Core material | Aluminum honeycomb | |||||
| Surface finish | PVC film/Powder Painted/Galv. steel plate | PVC film/Powder Painted/Aluminum plate | ||||
